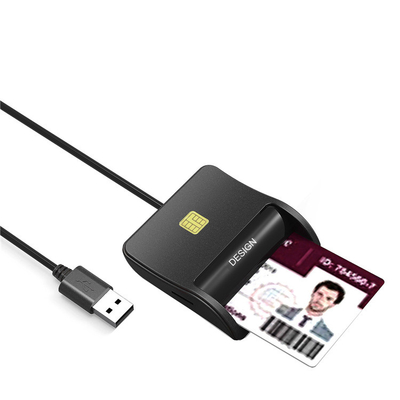

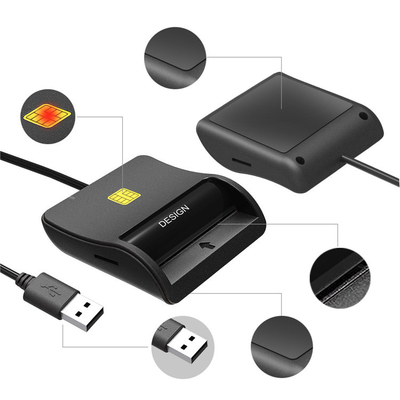

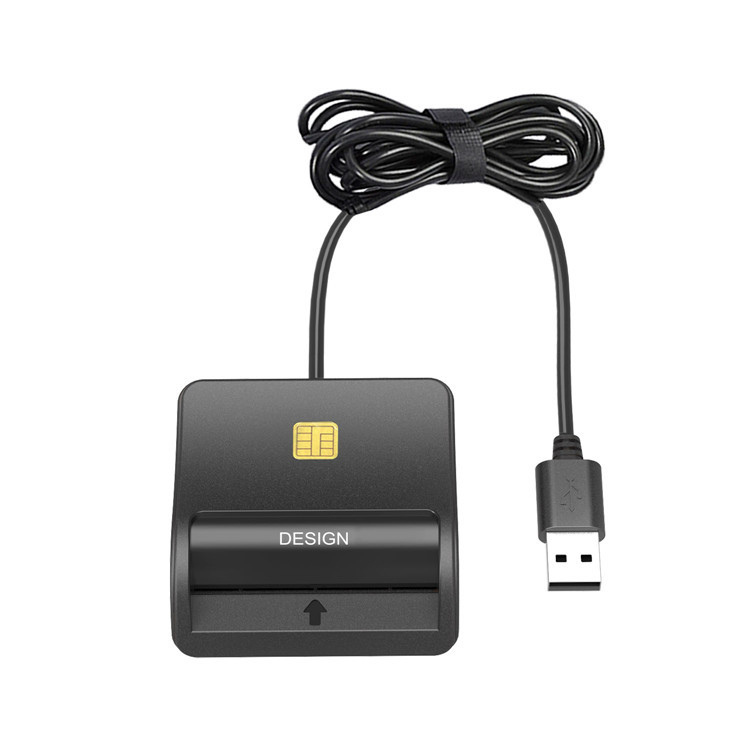

Name: High-end Wholesale Credit with Barcode Scanner Mobile Card Reader Device
Brand: Shenzhen Wangsen Electronics Co., Ltd.
SKU: SCR305
Availability: InStock

Home Products single card

High-end Wholesale Credit with Barcode Scanner Mobile Card Reader Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OEM
Model Number:	SCR305

Contact Now

Detailed Product Description

Private Mold:	Yes	Type:	SM Card
Interface:	TYPE-C, Usb	Card Slots:	Single Phase
Installation:	External	Material:	ABS

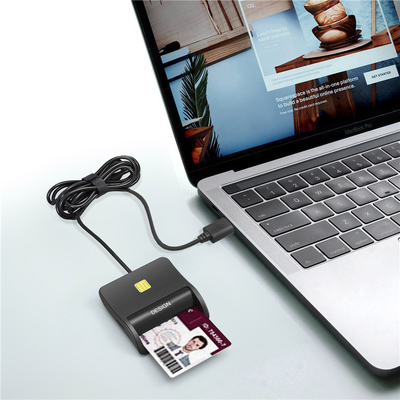

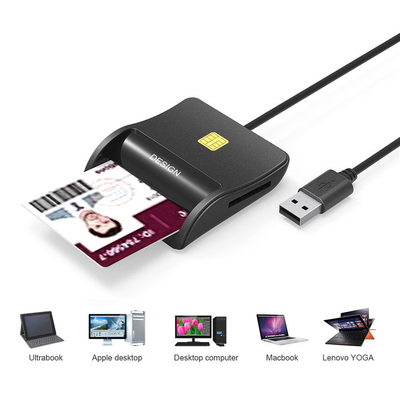

Support Card:	SM	Application:	LAPTOP, IUSB Pro, Mobile Phone, Mobile Devices, ATM, POS
Host Interface:	USB 2.0 CCID1 (also Compliant With USB 1.1)	Transmission Speed:	12 Mbps (USB 2.0 Full Speed)
Standards:	ISO 7816 & EMV2 2000 Level 1	Protocols:	T=0, T=1, SLE 4432/42 (S=10), SLE 4418/28 (S=9), I2C (S=8)
Card Size:	ID-1 (full-size)	Smart Card Interface Speed:	420 Kbps (when Supported By Card)
Smart Card Clock Frequency:	Up To 5 MHZ	Supported Card Types:	5V, 3V And 1.8V Smart Cards ISO 7816 Class A, AB And C
Power To Smart Card:	60Ma

Specification

Support card type	5V, 3V and 1.8V smart cards, ISO 7816 Class A, AB and C.
Interface Type	USB 2.0 CCID1 (also compliant with USB 1.1)
Transfer speed	12Mbps

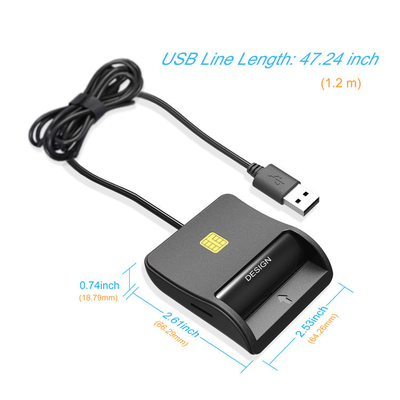

Line length	47.24inch
Certification standards	ISO-7816 and EMV2 2000 Level 1, CE, FCC, VCCI, CCID, Microsoft WHQL
Durability	100,000 times
Secondary development	Support multi-language development, provide routines
operating system	Windows 10, 8, 7 (32/64 bit), Windows XP, Vista (32/64 bit), Windows Server 2003/2008 (32/64 bit).
Operating temperature	0-55℃/32-131℉
Product Size	2.61inch2.53inch0.74inch
Package dimensions	9610325mm
