Name: Boutique Customization Credit Machine Tiny Magnetic Identity Card Reader
Brand: Shenzhen Wangsen Electronics Co., Ltd.
SKU: SCR-301
Availability: InStock

Home Products single card

Boutique Customization Credit Machine Tiny Magnetic Identity Card Reader

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	SENONE / OEM / Neutral
Certification:	RoHS / FCC /CE
Model Number:	SCR-301

Contact Now

Detailed Product Description

Type:	Other Type	Interface:	Usb
Card Slots:	Single Phase	Installation:	Internal
Material:	ABS	Support Card:	SD TF Memory Card Reader
Application:	IUSB Pro	Host Interface:	USB 2.0 CCID1 (also Compliant With USB 1.1)
Transmission Speed:	12 Mbps (USB 2.0 Full Speed)	Standards:	ISO 7816 & EMV2 2000 Level 1
Protocols:	T=0, T=1, SLE 4432/42 (S=10), SLE 4418/28 (S=9), I2C (S=8)	Card Size:	ID-1 (full-size)
Smart Card Interface Speed:	420 Kbps (when Supported By Card)	Smart Card Clock Frequency:	Up To 5 MHZ
Supported Card Types:	5V, 3V And 1.8V Smart Cards ISO 7816 Class A, AB And C	SDK:	Provide SDK

Specification

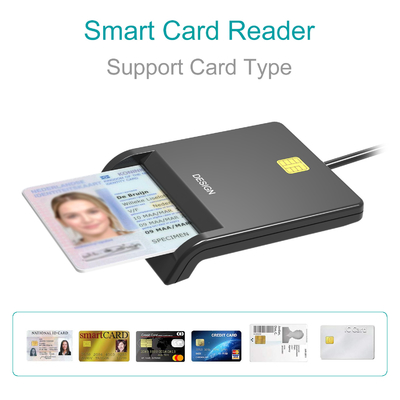

Support card type	5V, 3V and 1.8V smart cards, ISO 7816 Class A, AB and C.
Interface Type	USB 2.0 CCID1 (also compliant with USB 1.1)
Transfer speed	12Mbps
Line length	47.24inch
Certification standards	ISO-7816 and EMV2 2000 Level 1, CE, FCC, VCCI, CCID, Microsoft WHQL
Durability	100,000 times
Secondary development	Support multi-language development, provide routines
operating system	Windows 10, 8, 7 (32/64 bit), Windows XP, Vista (32/64 bit), Windows Server 2003/2008 (32/64 bit).
Operating temperature	0-55℃/32-131℉

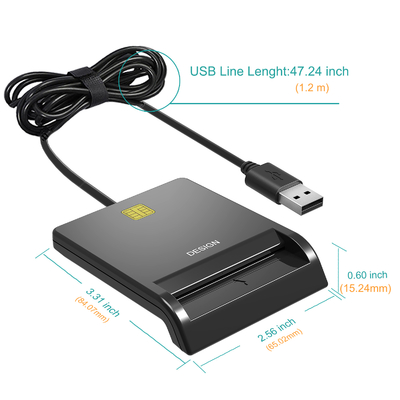

Product Size	3.26inch2.55inch0.95inch
Package dimensions	9610325mm
